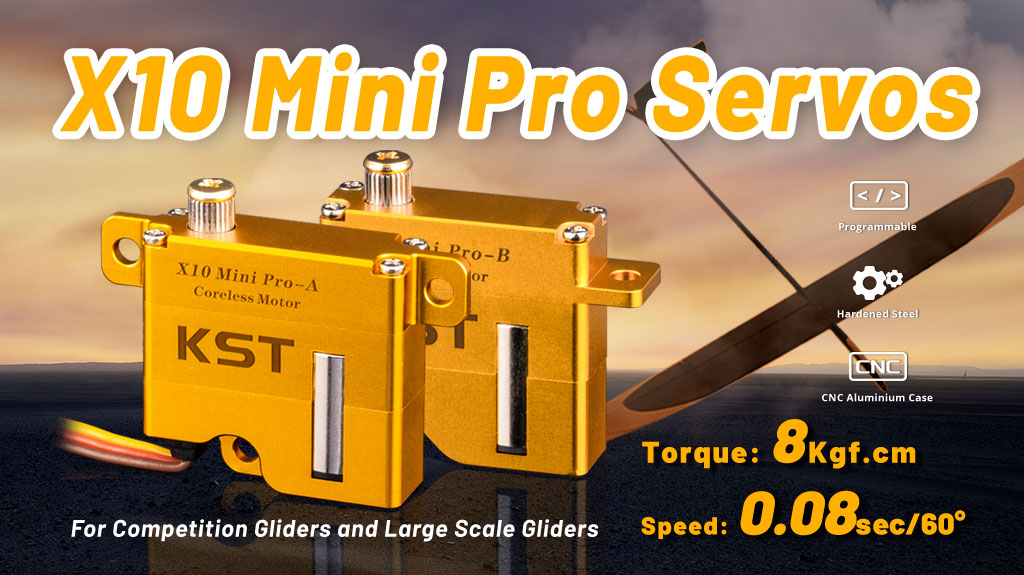

KST Servo - X10 Mini Pro-A Wing Servo - 8.0kg / 0.08 Sec (4.8-8.4V DC)
KST Servo - X10 Mini Pro-A Wing Servo - 8.0kg / 0.08 Sec (4.8-8.4V DC)
The new X10 Mini Pro servo is a brilliant mini servo for competition gliders, such as F5J and F5B and large scale gliders.
Compared to the regular X10 Mini servo, it has a higher torque, faster speed with a larger travel angle. X10 Mini Pro servo has an outstanding 8.0Kgf.cm torque and an amazing 0.08sec speed.
Support is available for customizing the servos for a unique flight experience via the programming feature. Moreover, this servo is equipped with a CNC aluminum case and hardened steel gear to improve durability and precision. It is definitely a superb micro servo for a fantastic flight.
Features
- Programmable
- Supports Soft Start
- Hardened Steel Gears

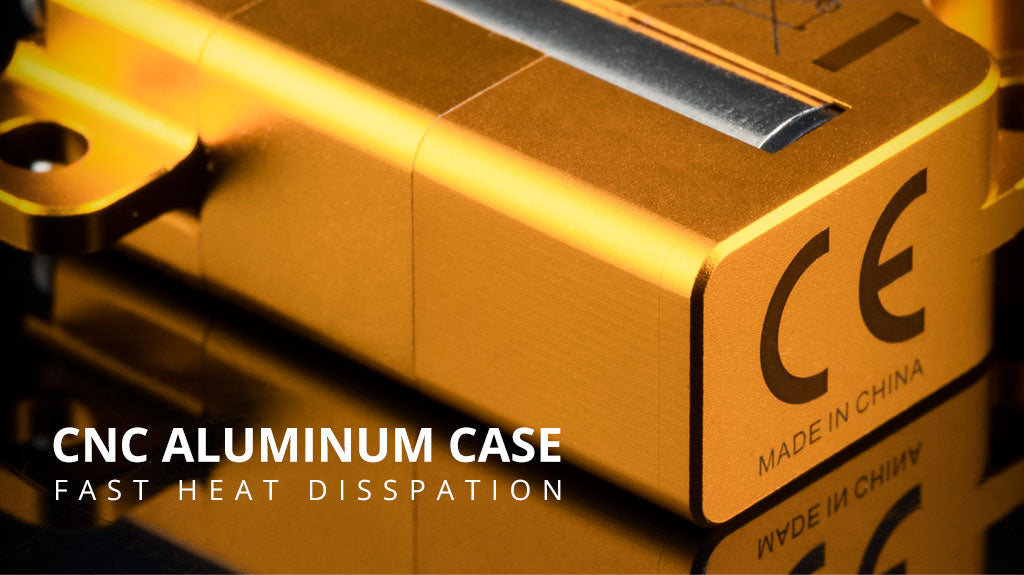

- Anodized CNC Aluminum Case
- Ultra High Torque & Excellent Speed
- Smaller Size and Larger Travel Angle
- Ideal for Competition Gliders and Large Scale Gliders
Specification
- Item: X10 Mini Pro Servo
- Rated Voltage: DC7.4V
- Voltage Range: DC4.8V-8.4V
- Torque: 4.5Kgf.cm@4.8V, 6.0Kgf.cm@6.0V, 7.2Kgf.cm@7.4V, 8.0Kgf.cm@8.4V
- Speed: 0.13sec/60°@4.8V, 0.11sec/60°@6.0V, 0.09sec/60°@7.4V, 0.08sec/60°@8.4V
- Working Frequency: 1520μs/333Hz
- Default Travel Angle: ±60°=120° Total
- Temperature Range: -10℃.......+65℃
- Soft Start: Programmable
- Programmable: Yes
- Case Material: Aluminum Alloy
- Motor Type: Coreless DC Motor
- Gear Set Material: Hardened Steel
- Position Sensor: Potentiometer
- Case Dimensions: 30mm*10mm* 28mm±0.2mm
- Weight: 20g±10%
Package Including
- 1 * X10 Mini Pro Servo
- 1 * Servo Horn Screw
- 2 * Plastic Servo Horn
- 4 * Mounting Screw
